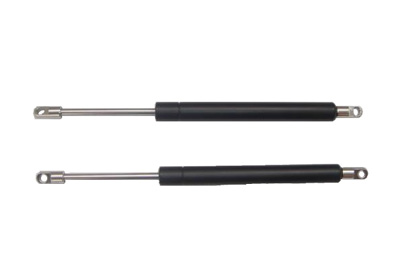

Product name：YQ series outlet gas spring

YQ系列出口气弹簧

一．接头为AA型塑球式YQ系列气弹簧

Two. Product specification: YQ10/21-250/580 (DD) 700N

Product parameters: cylinder diameter 21MM

Stroke rod diameter 10MM

Center distance (mounting distance) 580MM

Stroke length 250MM

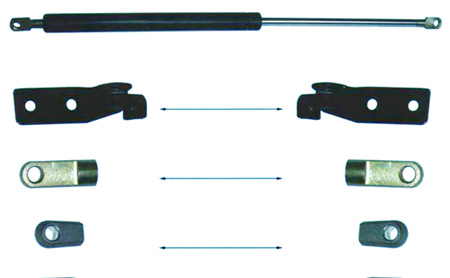

DD type milling fork or (Stamping) joint

Pressure 700N (70KG)

Three. Connector for C type small milling flat YQ series gas spring

Product specification: YQ6/15-73-247 (CC) -70N

Product parameters: cylinder diameter 15MM

Stroke rod diameter 6MM

Center distance (mounting distance) 247MM

Stroke length 73MM

CC C small milling flat joint

Pressure 70N (7KG)

Four. Rotary fork type YQ series gas spring

Product specification: YQ5/12-40-134.5 (CD) -30N

Product parameters: cylinder diameter 12MM

Stroke rod diameter 5MM

Center distance (mounting distance) 134.5MM

Stroke length 40MM

CD C: is a small touch Hanbian cylinder head

D: stroke rod for small U type fork joint

Pressure 30N (3KG)
